BGT1 Series Positioning Terminal

BGT1 Series Positioning Terminal

IP67
4G Communication Support
Accelerometer
RFID (13.56MHz)
Explosion-Proof Certification/Wireless Radio Approval Certificate (SRRC Non-Commissioned Certification)
RSSI\GPS\BDS

Product Description

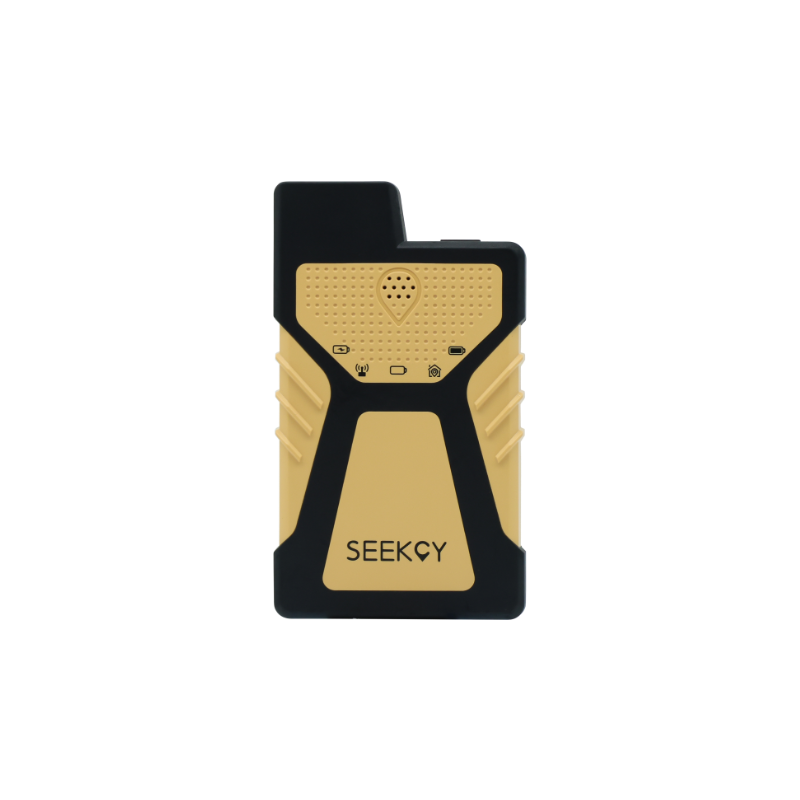

BGT1 is a card-type terminal in the Ti-D Positioning System, widely used for extensive personnel/vehicle tracking. It seamlessly switches between indoor and outdoor positioning, ensuring precise tracking in both environments. The terminal employs a unique floor algorithm for accurate indoor floor-level positioning and utilizes dual-mode Beidou/GPS for outdoor areas. The series includes a high-precision RTK version.

With a built-in speaker and vibration motor, BGT1 supports voice and vibration alerts for alarms, enhancing its versatility in various positioning scenarios. It also features a standard RFID tag for access control and meal card swiping. The terminal retains the traditional SOS physical button, supporting one-key alarms/help requests for swift safety alerts on the platform.

For explosive environments, the BGT1 offers a dedicated explosion-proof model suitable for areas like chemical plants and refineries (Explosion Protection Level: Ex ib IIC T4 Gb).

Key Features

One-Key Alarm

BGT1 supports one-key alarm functionality

RFID

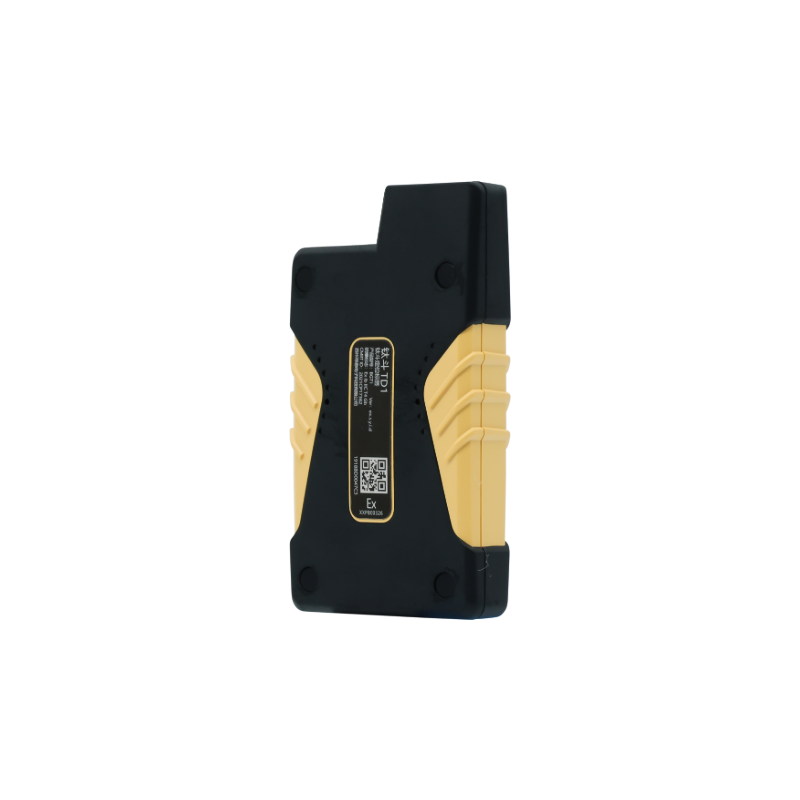

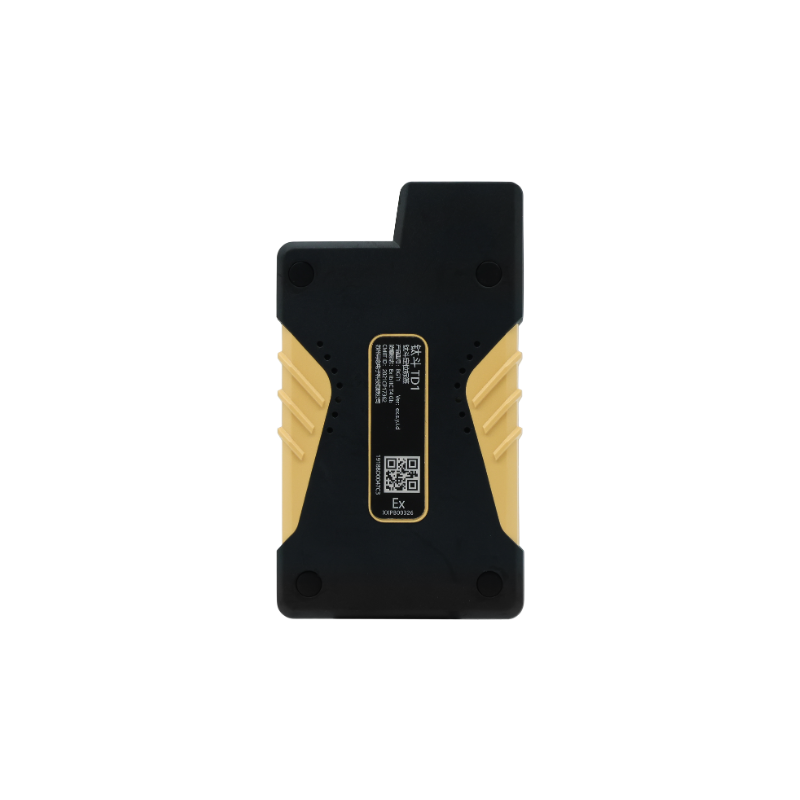

BGT1 features a built-in RFID chip for applications like access control, parking, and consumer scenarios, replacing traditional RFID cards. The ID is on the front, and the IC is on the reverse

Speed Measurement

BGT1 serves for vehicle positioning and speed measurement, supporting Beidou/GPS speed measurement with average speed results. Measurement may be affected in areas with no or poor Beidou/GPS signal

Explosion-Proof Terminal

BGT1 is designed as an explosion-proof terminal for hazardous environments, suitable for areas like chemical plants and refineries with corresponding explosion protection ratings

Differential RTK Terminal

For high-precision positioning needs, BGT1 offers an RTK differential version utilizing a high-performance module and a 360-degree omnidirectional antenna. It requires a differential reference station and service, with one station covering 25 kilometers

Video

Specifications

Specifications	BGT1 Standard Version	BGT1 Differential Version
Model	BGT1
Explosion-Proof Mark	Ex ib IIC T4 Gb; Ex ibD 21 T130°C
Power Supply	2000mAh Lithium Battery
Bluetooth Positioning Accuracy	3-5 meters
Satellite Positioning Accuracy	<15 meters	<3 meters
Battery Life	Continuous operation for 16h (5-second reporting)	Continuous operation for 12h (5-second reporting)
Positioning/Communication	Bluetooth + BDS/GPS Dual Mode + 4G	Bluetooth + Differential BDS/GPS + 4G
Protection Level	IP67
Operating Temperature	-20°C~60°C
Dimensions	59.5mm x 103mm x 19mm (LxWxH)
Weight	113 g
Indoor/Outdoor Positioning Switching	support
Voice Broadcast, Vibration	Supported (Voice alerts for alarms, low battery reminders, etc. – Voice is pre-installed and not customizable)
One-Key Alarm	support
RFID	Supported (IC/ID compatible, IC: S50/ISO14443A, ID: TK4100)
Wireless Upgrade Supported	support
Vehicle Speed Measurement	support (BDS/GPS Speed Measurement)
Other Performance Features	Motion Detection, Wearable with Straps, IoT Card for Patch

*Bluetooth positioning accuracy depends on signal deployment; outdoor testing in open environments. Battery life is an initial factory value; actual usage varies with scenarios and outdoor positioning duration. IP67 level dust and water resistance tested under controlled lab conditions, effectiveness may reduce over time due to wear. Avoid charging the device in humid conditions.

Document Download

Type	Name	Last Update Time
Product Specification	M1 Product Specification_V1.2.pdf	2023-2-6
