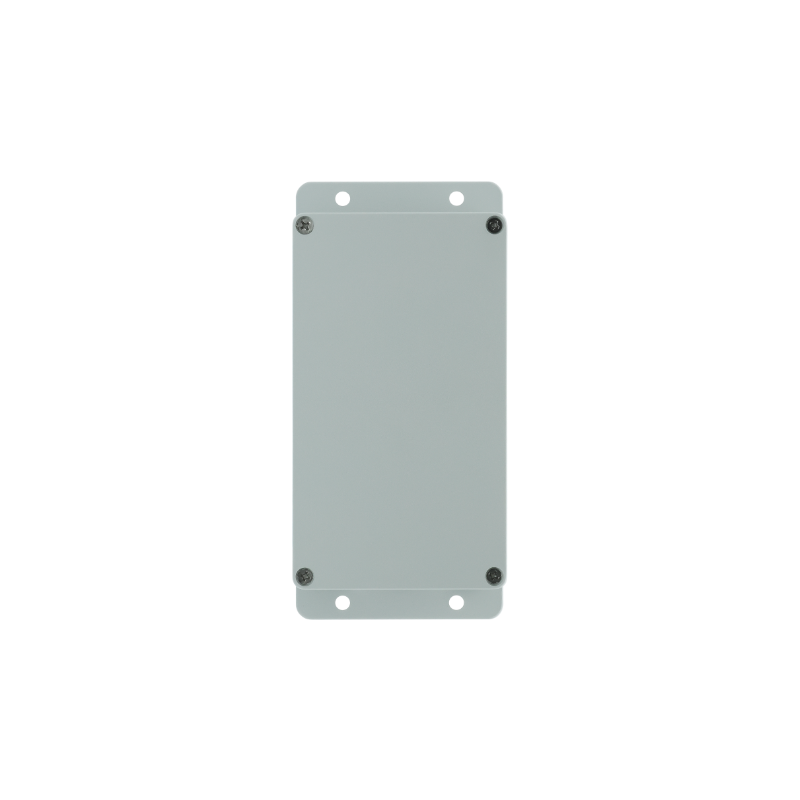

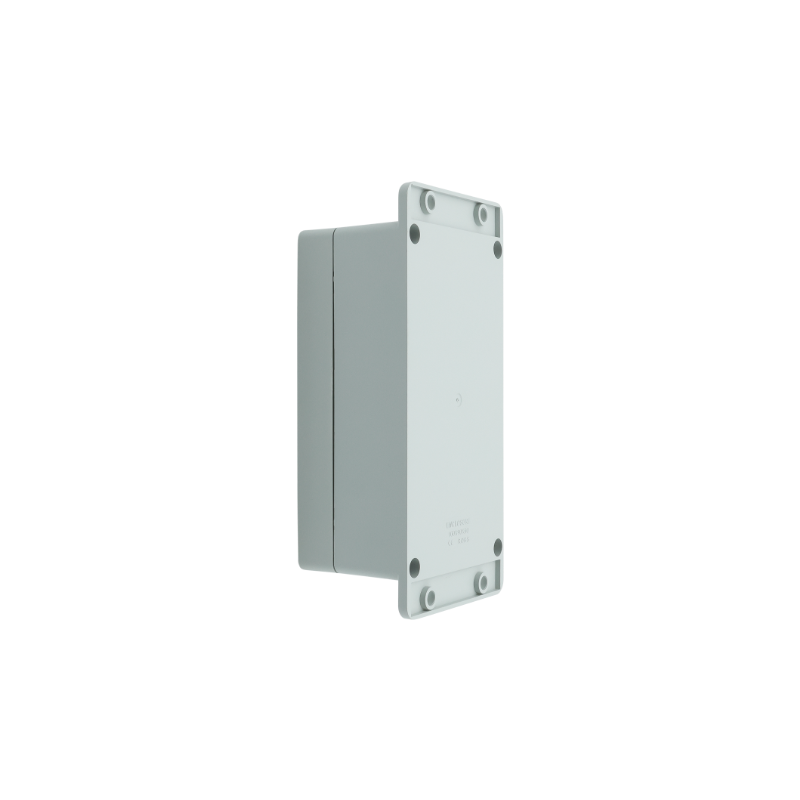

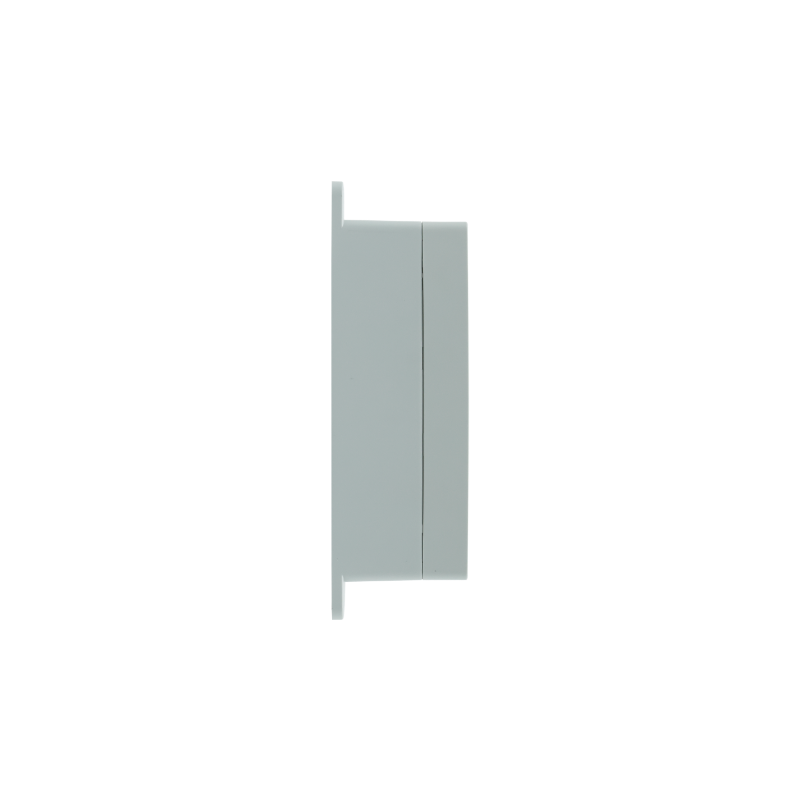

UB1 Series Wireless UWB Beacon
- IP68
- Deployment without the need for low-voltage construction
- Ultra-Long Standby: 3~5 Years
- Up to 10cm-level Positioning Accuracy
- Explosion-Proof Certification: Ex ib IIC T4 Gb, Ex ibD 21 T130℃ (Intrinsically Safe Explosion-Proof)
- CE Certification/Wireless Radio Approval Certificate (SRRC Non-Commissioned Certification)
Product Description
The UB1 Series Wireless UWB Beacon is a key component of the Wireless UWB positioning system. It utilizes UWB technology to precisely measure distances between the beacon and positioning terminals, enabling high-precision location tracking. Designed for outdoor use, the beacon features long battery life and a robust IP68-rated plastic casing with an integrated antenna, suitable for diverse indoor and outdoor environments, including challenging industrial settings.
Applications
Video
Specifications
| Device Model | UB1 |
| Protocol Support | UWB Ultra-Wideband Communication Protocol 802.15.4a/2.4G BLE Communication Protocol |
| Positioning Method | TOA+RSSI |
| Power Supply | 38000mAh Lithium Battery (Non-rechargeable, replaceable) |
| Battery Life | 3~5 years (depends on positioning service frequency) |
| Operating Frequency | 3.7GHz~7GHz |
| Transmission Range | Up to 150 meters+ in open environments |
| Recommended Deployment Interval | 30~50 meters |
| Protection Level | IP68* |
| Explosion Protection Level | Ex ib IIC T4 Gb, Ex ibD 21 T130℃ Intrinsically Safe Explosion-Proof |
| Operating Temperature | -40°C~85°C |
| Operating Humidity | Not exceeding 95%** |

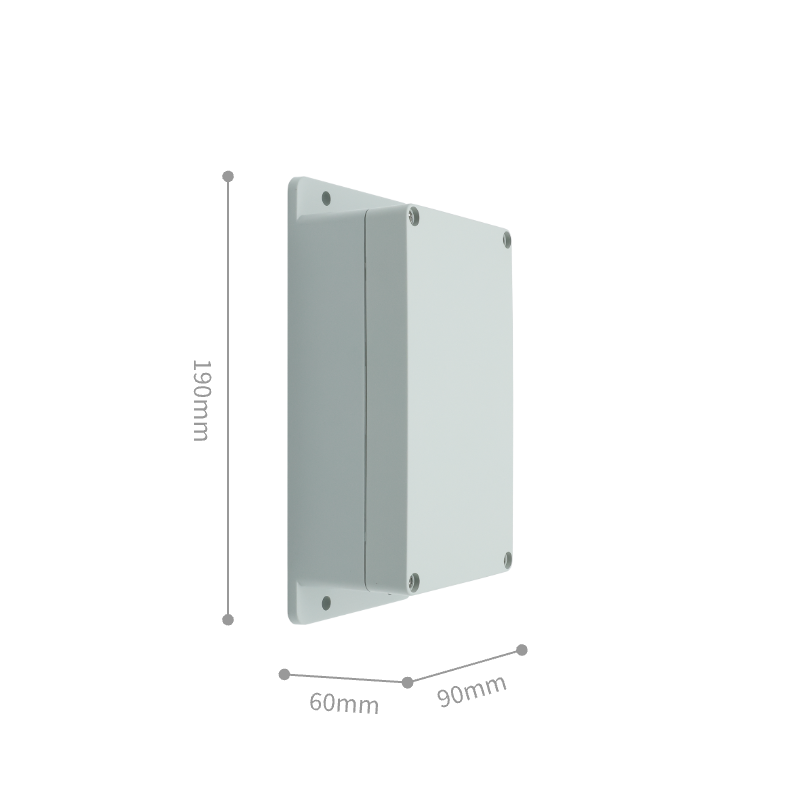

| Dimensions | 190mmx90mmx60mm (LxWxH) |
| Weight | Approximately 500 grams |
| Online Upgrade | Supported |
| Battery Monitoring | Supported |
| Battery Replacement | Supported |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
