BLG2P-Ex (Explosion-proof Model)
- Explosion-proof
- 4G Communication Support
- Single Base Station Coverage Area: 15,000 to 20,000 square meters
- Maximum Communication Channels: 4 channels
- Multiple power supply modes: Supports both DC direct current and PoE supply
- Built-in battery (optional)
- Provides Location Results API Interface for Easy Secondary Development
- Explosion-proof Certification/3C Certification/Wireless Radio Approval Certificate (SRRC non-commissioned certification)
Product Description

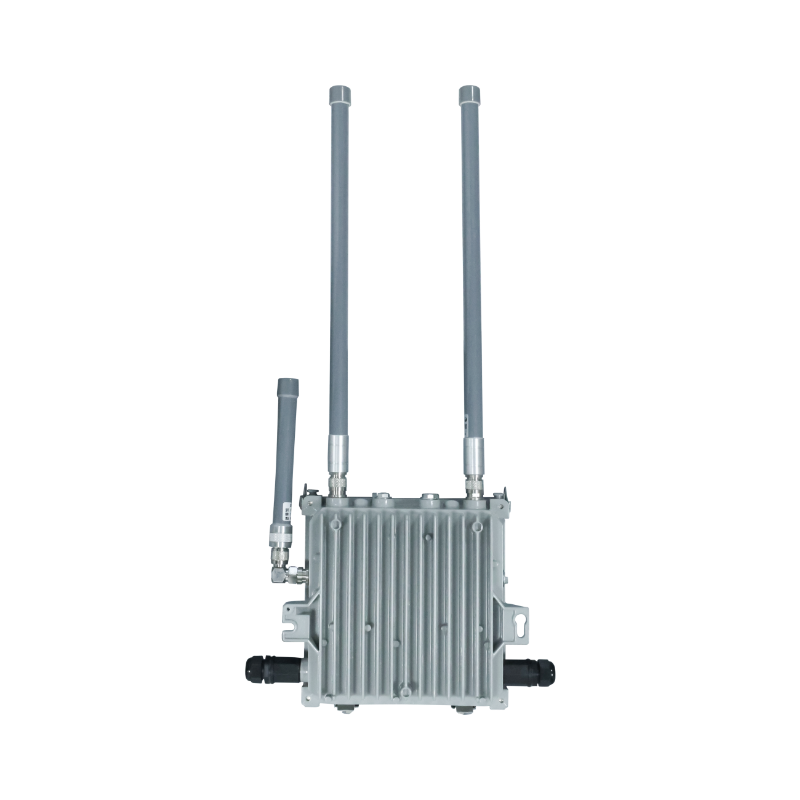

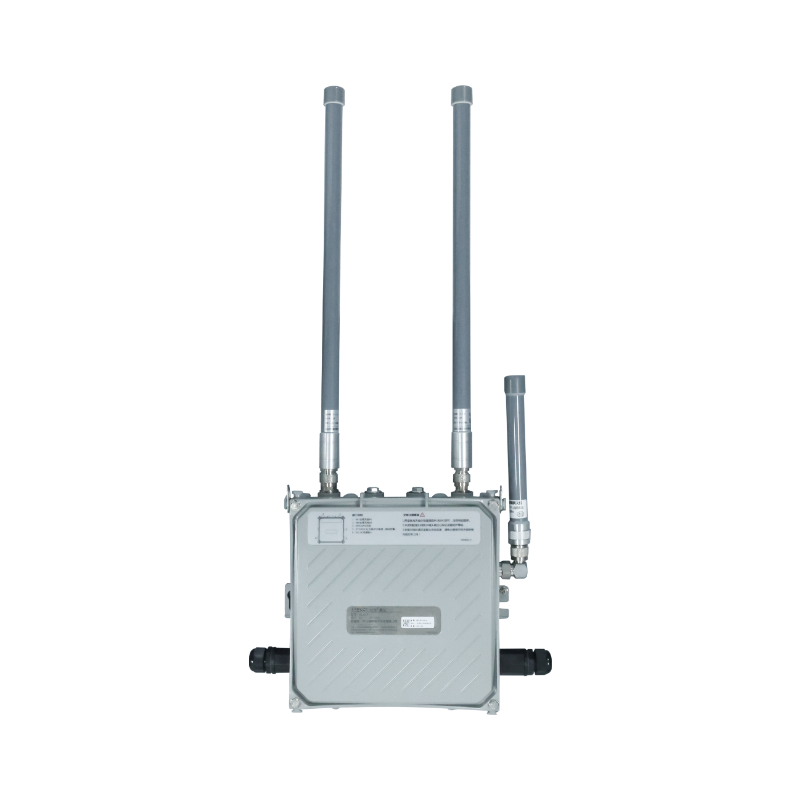

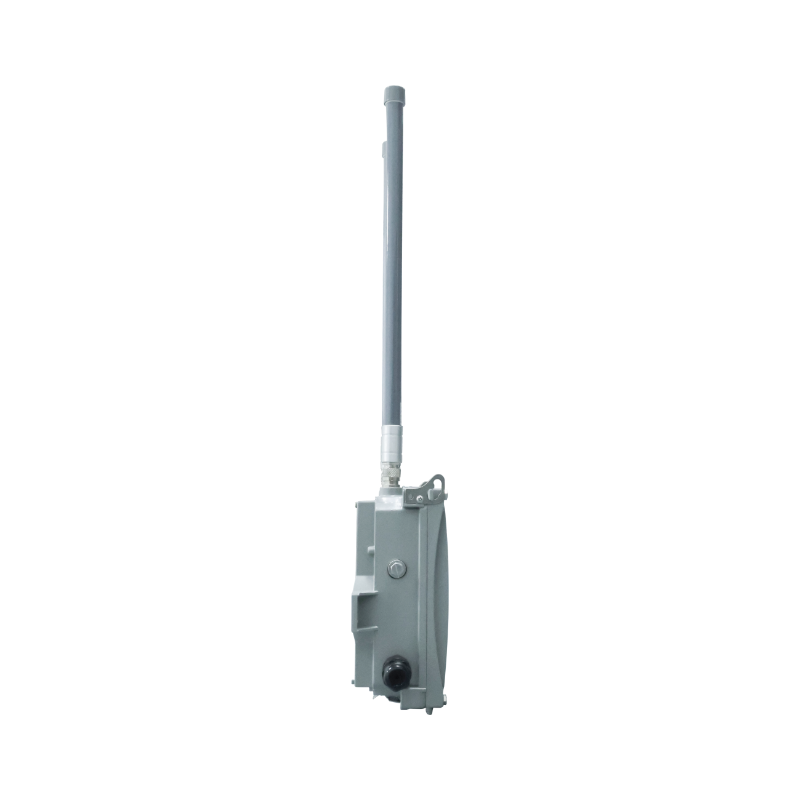

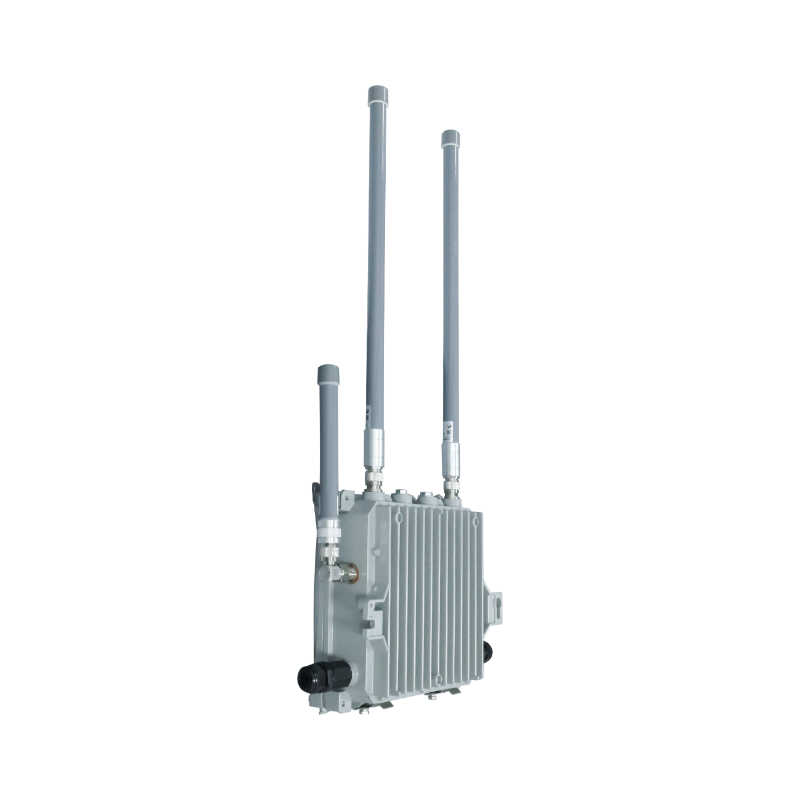

The BLG2P series utilizes a full aluminum shell with a fiberglass antenna design for outdoor Ti-Z® system networking. Equipped with dedicated Ti-Z® communication and network chips, it enables seamless communication with Ti-Z® terminals. Communication results are transmitted for backend processing and display. The base station supports both DC and PoE power supply modes.
Key Features
Video
Specifications
| Device Model | BLG2P-Ex |
| Explosion-proof Marking | Ex ic IIB T5 Gc |
| Protocol Support | DC Input: Ui:9.5V Ii:1A |
| Ti-Z® Channels | Up to 4 channels |
| Ethernet Communication | Supported |
| 4G Communication | Optional |
| Operating Temperature | -40℃~75℃ |
| Operating Humidity | Not exceeding 90% |
| Protection Level | IP66 |
| Dimensions | 340mmx265mmx115mm (LxWxH) (Main Unit, excluding accessories) |
| Weight | Approximately 2.5~3kg (may vary by model) |
| Online Upgrade | Supported |
| Features | Full cast aluminum shell, three-proof design, suitable for outdoor harsh environments |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
