BLT2 Tamper-Proof Asset Positioning Tag
- Motion Detection: Equipped with motion-sensing capabilities.
- One-Key Alarm/Maintenance Reporting
- Ultra-Long Standby Time: Provides an extended standby time of up to 3 years.
Product Description
BLT2-FC is a positioning tag designed for the Ti-Z. With its compact size and long standby capability, it is widely used for precise tracking of materials. Featuring a 1600mAh lithium-manganese battery and Titanium’s low-power positioning technology, it achieves extended battery life in various scenarios. BLT2-FC supports one-key maintenance and tamper-proof alarm functions, ensuring effective material management and asset security.
Applications
Video
Specifications
| Device Model | BLT2-FC |
| Protocol Support | Ti-Z Protocol, Bluetooth BLE 4.2, Apple iBeacon Protocol |
| Power Supply | 1600mAh Lithium Manganese Battery |
| Transmission Range | Up to 1800m in an open environment |
| Battery Life∗ | Up to 30 days in active mode (reporting every 5 seconds) Up to 3 years in sleep mode (reporting every 10 minutes) |
| Reporting Interval | Configurable from 1 second to 10 minutes in active mode Configurable from 1 second to 30 minutes in sleep mode |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | Not exceeding 90%* |

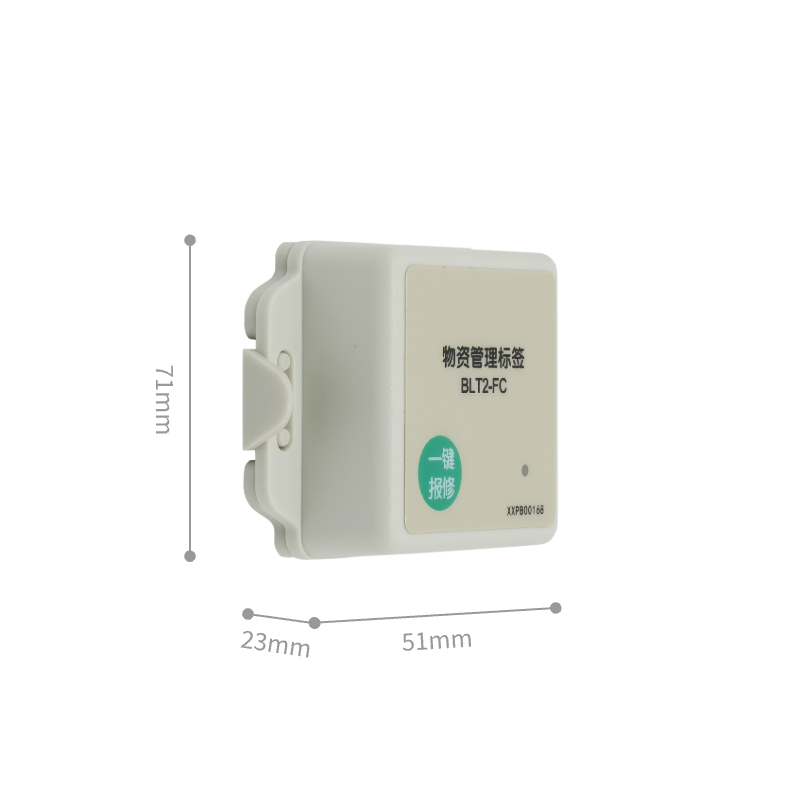

| Dimensions | 71mm x 51mm x 23mm (LxWxH) |
| Weight | Approximately 52g |
| Gravity Sensor | Supported |
| LED Indicators | Indications for successful communication and low battery |
| One-Key Repair Function | Supported |
| Tamper-Proof Alarm Function | Supported |
| Other Features | Motion detection |

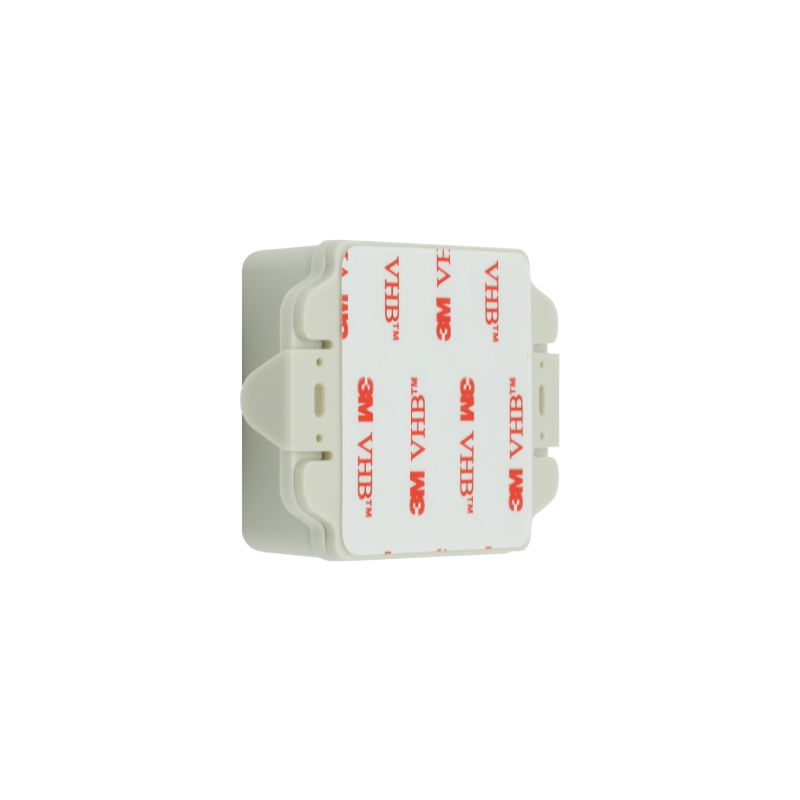

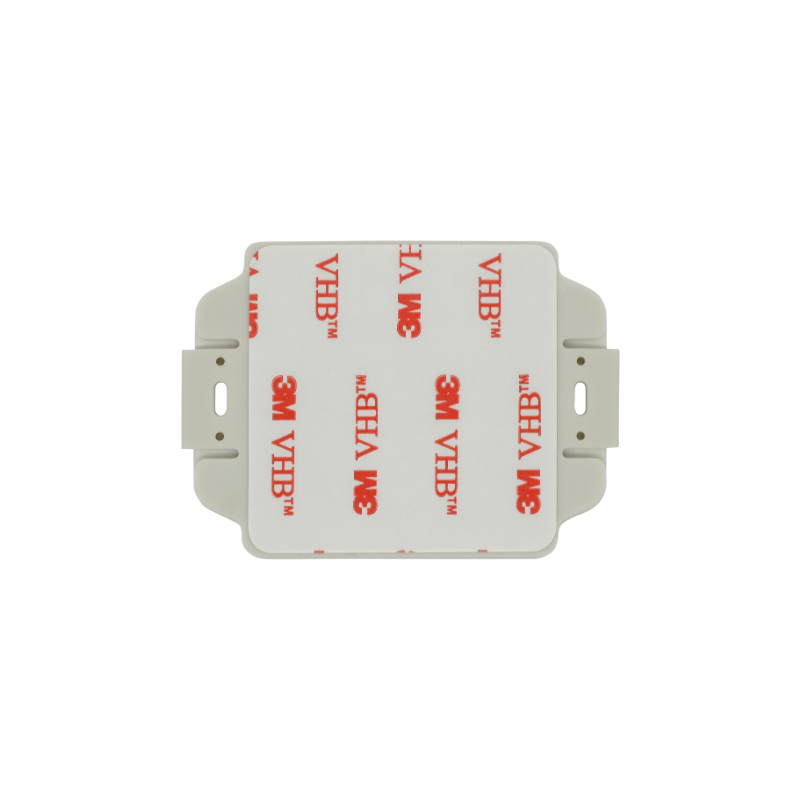

| Installation Method | Fixed with 3M adhesive |
| Characteristics | Ultra-long standby, easy installation, suitable for asset positioning |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
