BLT5 Series Card-type Positioning Terminal
- IP67
- RFID (13.56MHz)

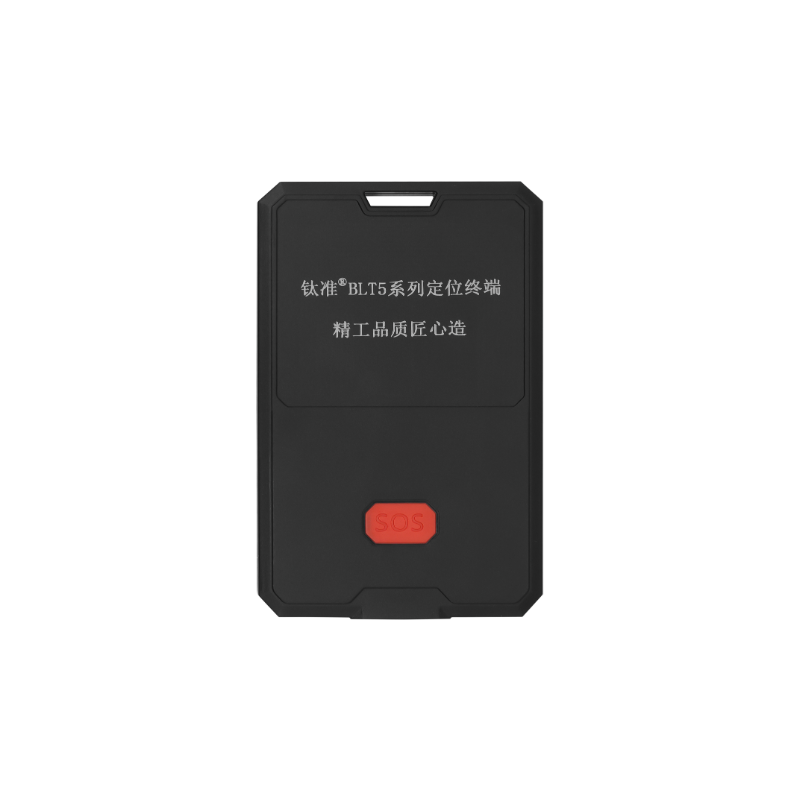

- One-Key Alarm
- Magnetic Charging
- Accelerometer, Barometer Sensors (optional)

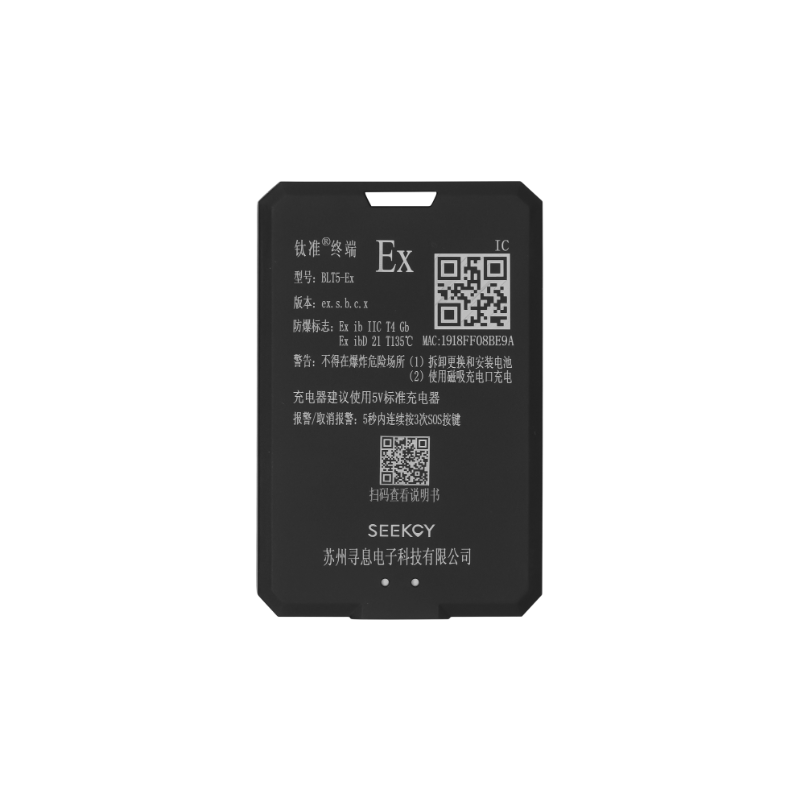

- Explosion-proof Certification Ex ib IIC T4 Gb (optional)
Product Description
The BLT5 Series Positioning Terminal, designed for the Ti-Z Positioning System, is a compact card-type device ideal for precise tracking of individuals and objects. With a rechargeable battery and unique low-power technology, it ensures extended standby times. Supporting magnetic charging, it features a built-in RFID chip for access control and consumer applications. The one-key alarm function enhances safety by enabling quick distress signaling to the base station. Additionally, there are explosion-proof models available for specific requirements.
Applications
Standard precision personnel tracking
Asset management
Import and export control
Parking lot management
Video
Specifications
| Model | BLT5 | BLT5-Ex |
| Protocols | Ti-Z® Protocol, Ti-Z® Large Coverage Protocol, Bluetooth BLE 4.0 Protocol, iBeacon Protocol | |
| Power Supply | 780mAh Lithium Battery | |
| Charging Method | 5V/1A; Magnetic contact charging | |
| Battery Life | Up to 1 month with 8 hours of daily work | |
| Reporting Interval | Configurable from 1 second to 10 minutes in working state; 1 second to 30 minutes in sleep state | |
| Waterproof and Dustproof | IP67 | |
| Operating Temperature | -20℃~60℃ | |
| Operating Humidity | Not exceeding 90% | |

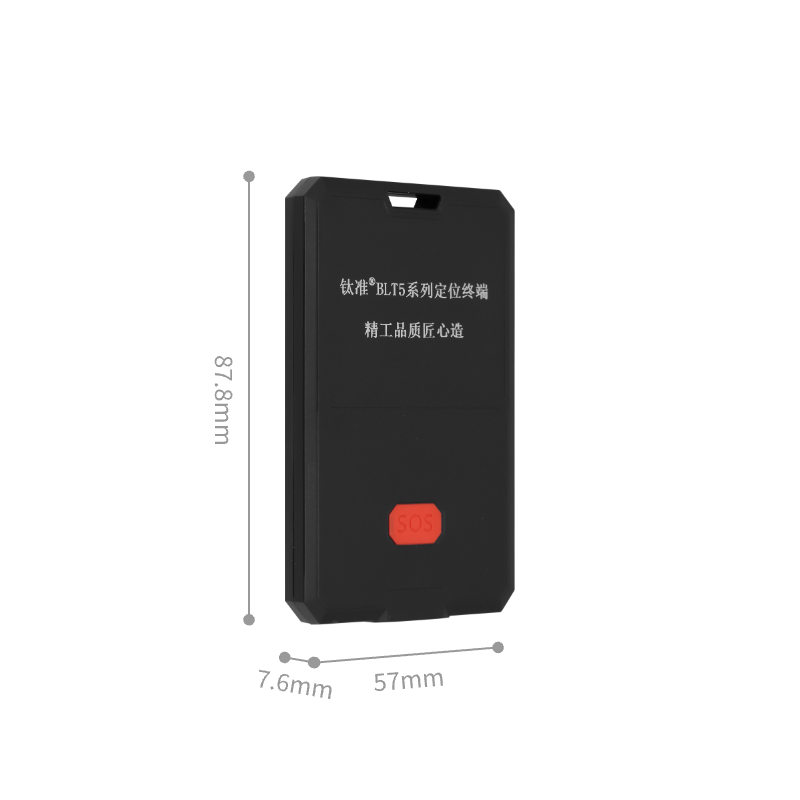

| Dimensions | 87.8mmx57mmx7.6mm(LxWxH) | |
| Weight | 39g | |
| RFID Standard | 13.56MHz, ISO14443A | |
| Mobile OTA Upgrade | Supported | |
| iBeacon Whitelist | Supported | |
| Gravity Sensor | Supported | |
| Indicator Function | Charging indication, communication success indication, battery level indication | |
| Alarm Function | One-key alarm | |
| Other Features | Motion detection, optional multi-sensor auxiliary positioning | |
| Multi-sensor auxiliary positioning | optional | |
| Explosion-proof Rating | Optional – Ex ib IIC T4 Gb | |
| Characteristics | Chest card design, ultra-long standby, suitable for personnel and asset tracking | |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
| Product Specification | M1 Product Specification_V1.2.pdf | 	2023-2-6 |
