R5C Universal Indoor Beacon
- IP64
- 4-5 Years Battery Life
- Broadcast Range of 120 Meters
Product Description
The R5C Universal Indoor Beacon is a low-power Bluetooth device designed for positioning and marketing. It features a delicate touch and compact design; 3M adhesive for flexible installation, suitable for various applications. The R5C utilizes indoor positioning technology for quick personnel location and real-time marketing push.
Applications
Video
Specifications
| Device Model | R5C |
| Chip | Dialog DA14* Series |
| Supported Protocols | Bluetooth BLE 4.2, Apple’s standard iBeacon protocol |
| Measurement Method | RSSI |
| Power Supply | 1500mAh Lithium Manganese CR123A Battery |
| Transmission Power | 0dBm or -20dBm (default 0dBm) |
| Transmission Distance | Up to 120m |
| Battery Life | 5 years (calculated with 500ms broadcast interval, 0dBm power) |
| Broadcast Interval | Configurable, range 100ms to 5000ms |
| Protection Level | IP64 |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | Not exceeding 90% |

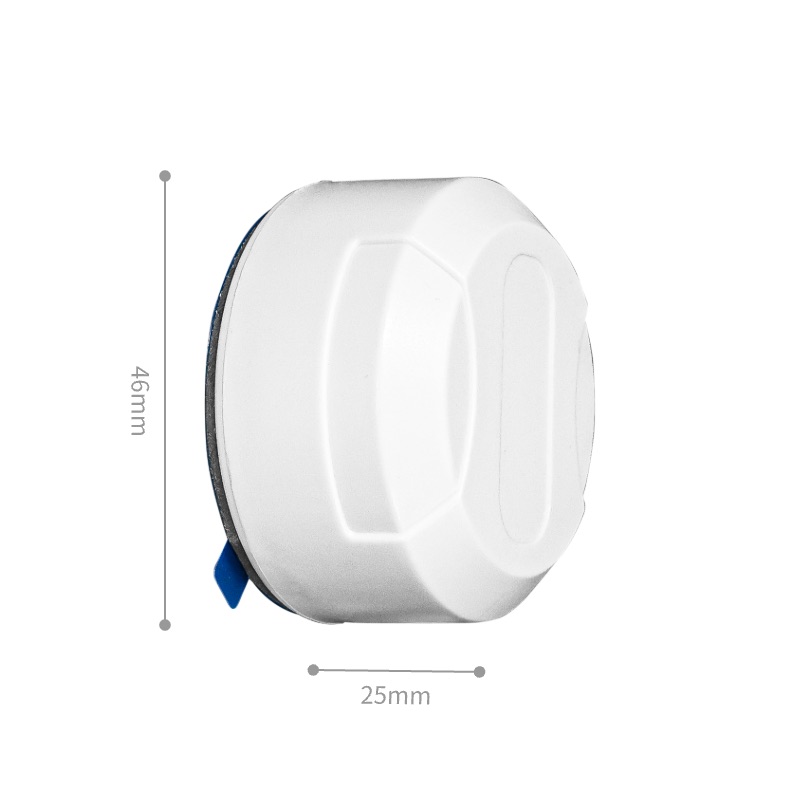

| Dimensions | Diameter 46mm, Thickness 25mm |
| Weight | 48 grams |
| Compatible Systems | Android 4.2 and above |
| Security | Password protection, tamper-proof |
| APP Configuration | Supports modifying UUID, Major, Minor, broadcast interval, transmission power, setting anti-tampering key, etc. |
| Additional Features | Provides secondary development SDK |
| Certifications | CE, FCC, IP64 |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
