C8 Multi-functional Card-type Positioning Terminal
- 5-year ultra-long battery life
- Optional RFID functionality
- Equipped with external buttons, supports one-click alarm development
- All parameters adjustable via the mobile app
Product Description

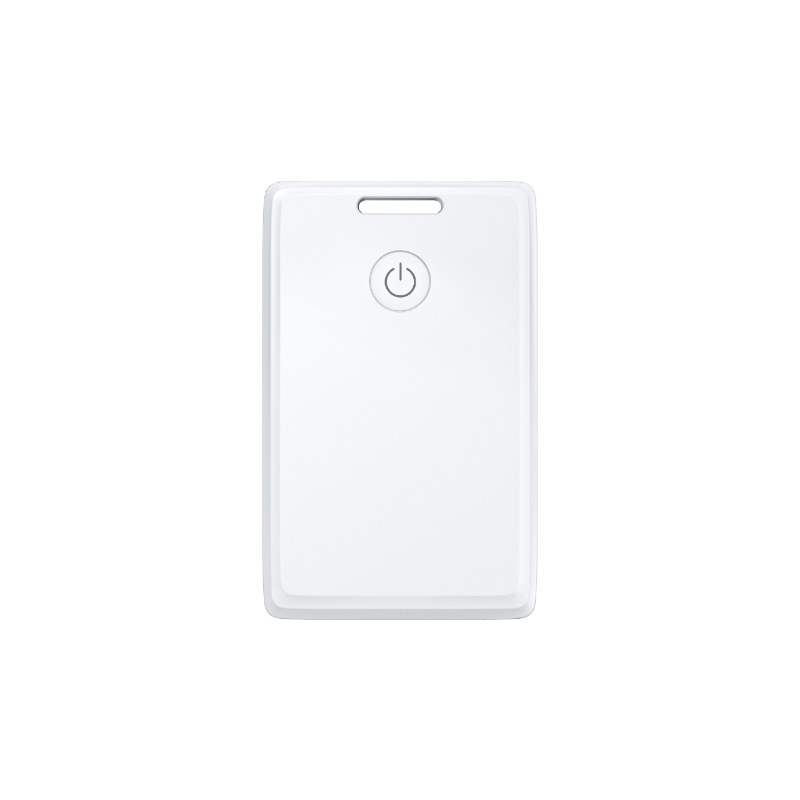

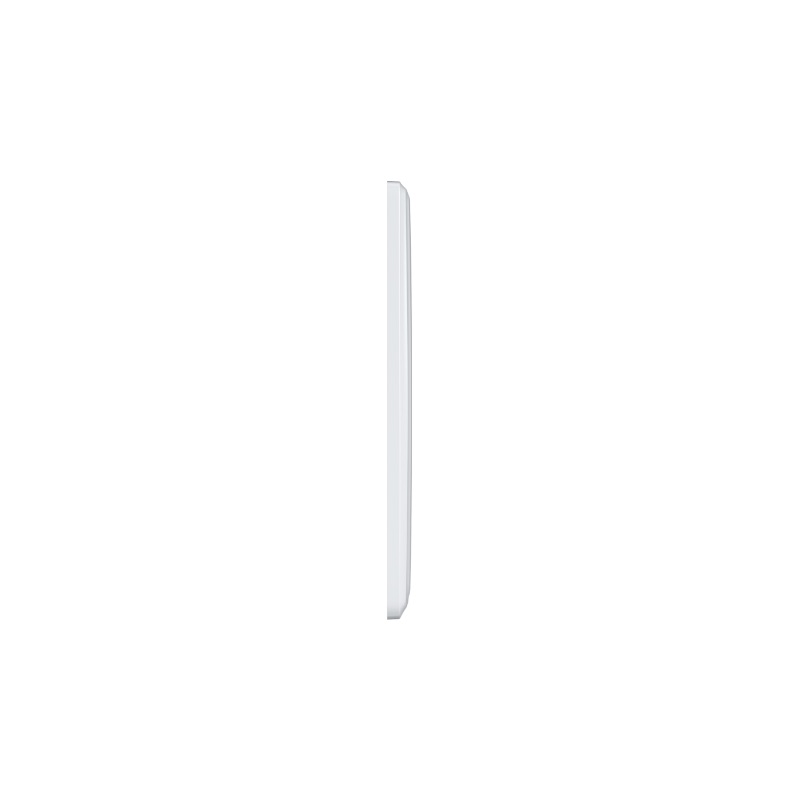

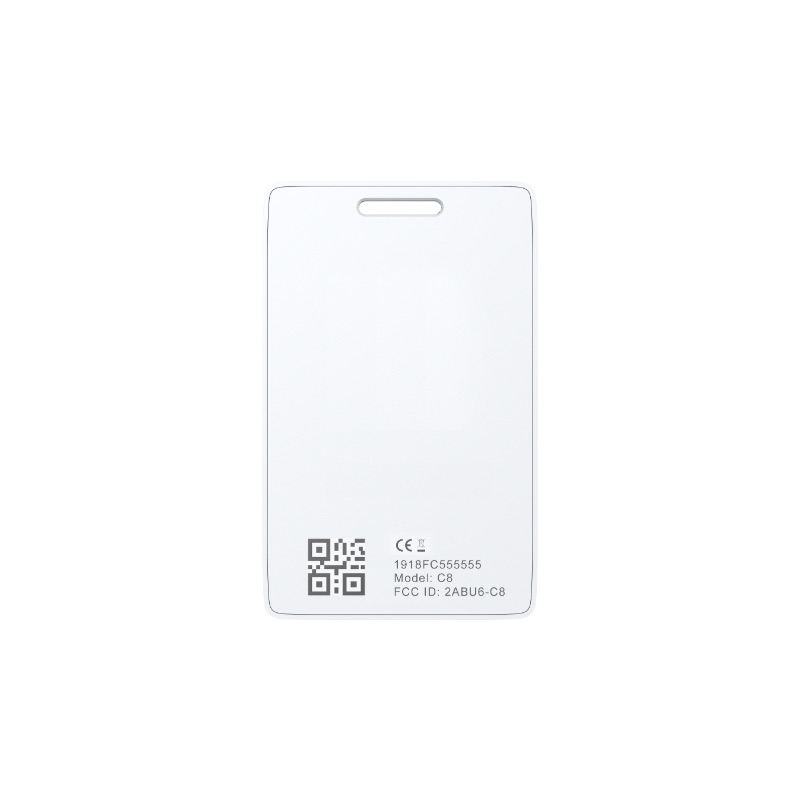

C8 is a slim and portable card-type device with an ABS casing, measuring just 4.9mm in thickness. It offers a battery life of over 5 years and optional features include an ACC acceleration sensor and 13.56MHz RFID. The RFID functionality supports daily tasks like clock-in, attendance, consumption, and access control. Paired with a gateway, Bluetooth positioning quickly determines the wearer’s location for personnel safety management and tracking. This versatile solution aids in employee management, task allocation, and process optimization while also collecting data for improved sales opportunities.
Applications
Activity Monitoring: Historical Trajectory, Electronic Fence
Personnel Management: Personnel Safety Management, Daily Clock-in and Sign-in
Indoor Positioning: Personnel Location, Position Information
Video
Specifications
| Device Model | C8 |
| Chip | Dialog DA14* Series |
| Supported Protocols | Bluetooth BLE 5.1, Apple iBeacon, Google Eddystone, AOA |
| Measurement Method | RSSI |
| Power Supply | Button cell battery, capacity 230mAh |
| Transmission Power | Default 0dBm |
| Transmission Distance | Up to 120 meters |
| Battery Life | 1.5 years (default parameters) |
| Broadcast Interval | Default 1000ms, adjustable range 100ms to 3000ms |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | Not exceeding 90% |
| Dimensions | 38.2 * 31.5 * 11mm (L * W * H) |
| Weight | Approximately 20 grams |
| LED Indicators | Alarm indication, power on/off indication, low battery alert |
| Alarm Functionality | Equipped with external buttons, supports development of one-click emergency call/one-click alarm functions |
| RFID | Yes, supports UHF (860~960MHz), HF (13.56MHz), LF (125kHz) selectable |
| Certifications | CE Certification, FCC Certification |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
| Product Specification | M1 Product Specification_V1.2.pdf | 	2023-2-6 |
