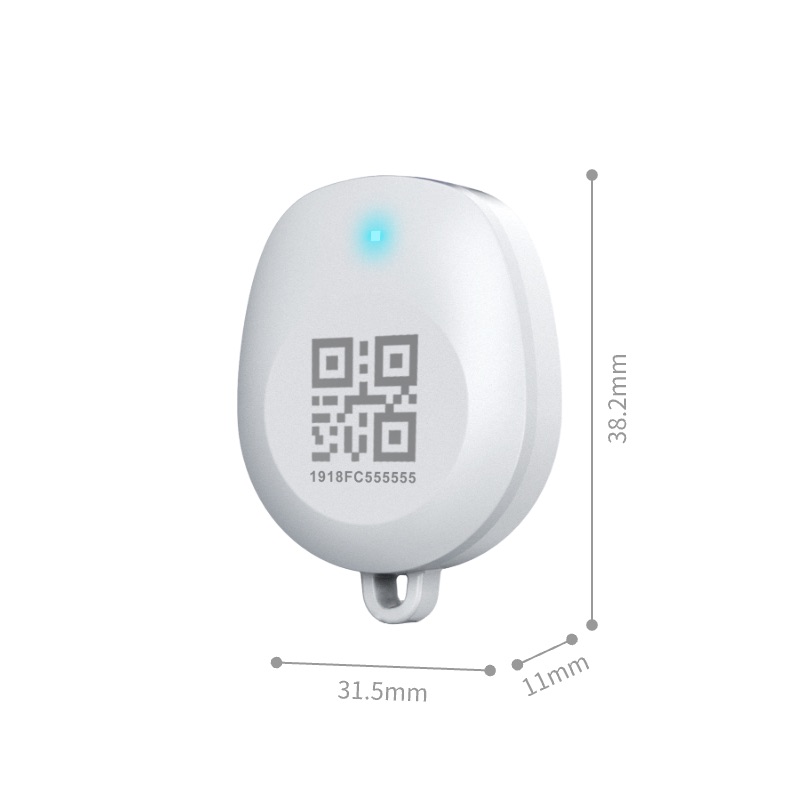

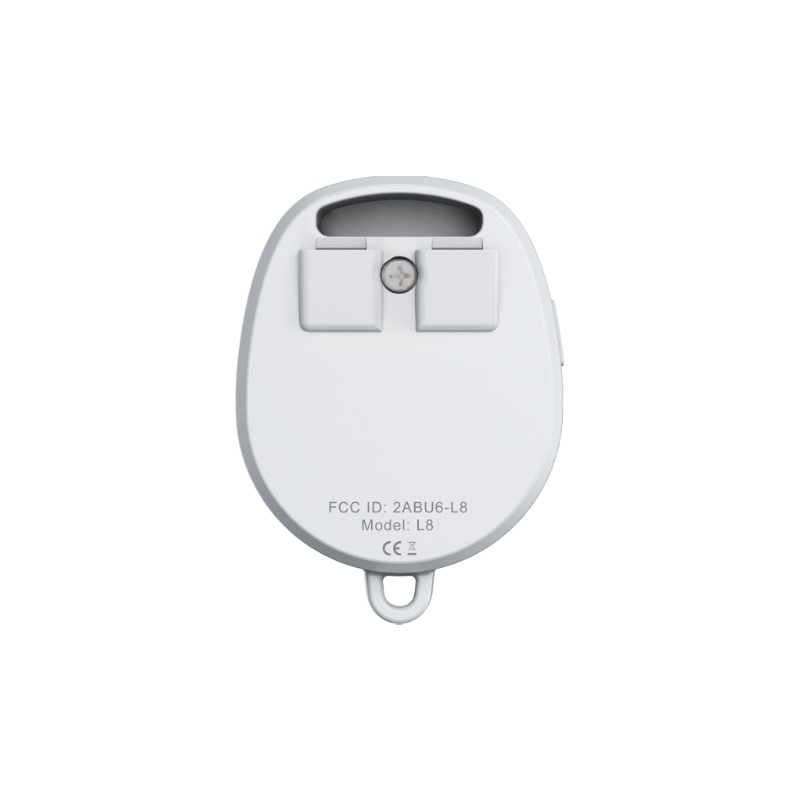

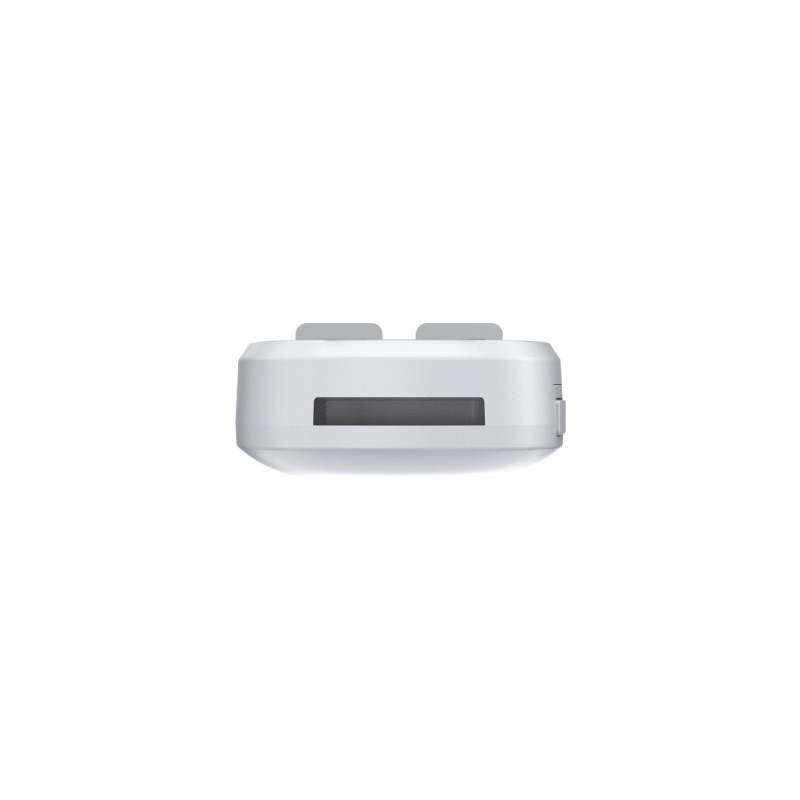

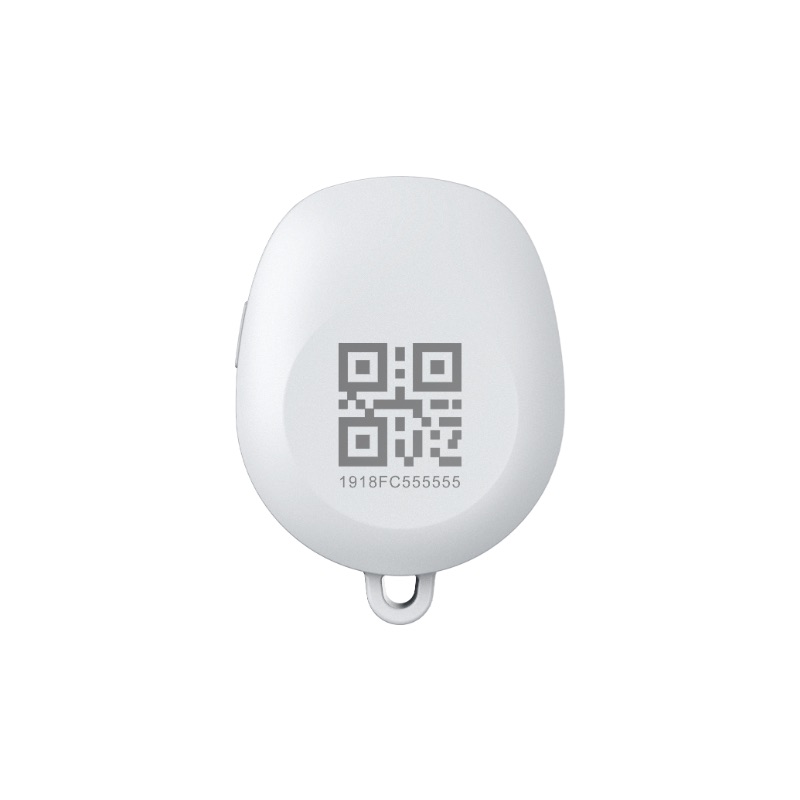

L8 Portable Clip-On Bluetooth Beacon
- IP66 Waterproof
- Over 5 Years of Battery Life
- Maximum Transmission Distance of 120 Meters
- Optional Accelerometer
- All Parameters Adjustable via App
Product Description
The L8 Portable Clip-On Bluetooth Beacon, suitable for various accessories, offers ease of use and portability. This Bluetooth 5.1 device, ideal for positioning and marketing, has over 1.5 years of battery life with replaceable batteries. It features built-in RFID 13.56MHz, compatible with ID and employee cards, facilitating cashless payments and access control, perfect for events like exhibitions and concerts. Combined with gateways, it enables efficient tracking of wearer’s movements and status for safety management and trajectory monitoring, applicable in employee attendance and visitor management.
Applications
Emergency Response
The C8 is equipped with a one-touch SOS button
Personnel Tracking and Positioning
Quickly locates individuals, commonly used in schools, hospitals, offices, etc
Indoor Activity Monitoring
Monitors the duration, range, and dwell time of targeted activities
Asset Tracking and Positioning
Tracks assets by attaching to the targeted assets
Warehouse/Inventory Management
Assists staff in easily locating items in the warehouse
Video
Specifications
| Device Model | L8 |
| Chip | Dialog DA 14* Series |
| Supported Protocols | Bluetooth BLE 5.1, Apple’s standard iBeacon protocol, Google Eddystone protocol, AOA protocol |
| Measurement Method | RSSI |
| Power Supply | 1pcs Li-MnO2 battery, 850mAh capacity |
| Transmission Power | Default 0dBm |
| Transmission Distance | Up to 120 meters |
| Battery Life | Over 5 years (default settings, ACC off) |
| Broadcast Interval | Default 1000ms, adjustable range 100ms to 3000ms |
| Protection Level | IP66 dust and water-resistant |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | Not exceeding 90% |
| Dimensions | 86*54*4.9mm (L*W*H) |
| Weight | About 20 grams |
| LED Indicators | Alarm, switch, and low battery indication |
| Alarm Function | With external button, supports development of one-touch SOS/alarm functions |
| Sensor | Supports accelerometer (optional) |
| RFID | Yes, supports UHF (860~960MHz), HF (13.56MHz), LF (125kHz) – one of three |
| Certifications | CE, FCC, IP66 |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
| Product Specification | M1 Product Specification_V1.2.pdf | 	2023-2-6 |
