BLT1 Series Card-type Positioning Terminal
- Acceleration Sensor
- RFID (13.56MHz)
- One-key Alarm/Assistance
Product Description
The BLT1 series, tailored for the Titanium Precision Positioning System, offers a compact design and prolonged standby capability. Ideal for precise location tracking of individuals and items, the series features a 400mAh rechargeable lithium battery with efficient, low-power positioning technology. Charging is hassle-free with the MicroUSB interface.
Select BLT1 models are equipped with a standard 13.56MHz RFID chip, replacing traditional cards in applications like access control and parking. Additionally, certain models support one-key alarm/assistance, swiftly ensuring the safety of positioned individuals through quick requests to the base station.
Key Features
13.56MHz RFID
Batch Charging (MicroUSB Universal Charging Interface)
One-Key Alarm/Assistance
Low-Power Positioning Technology
Video
Specifications
| Device Model | BLT1 Series Card-type Positioning Terminal |
| Protocol Support | Ti-Z Protocol, Bluetooth BLE 4.2, Apple iBeacon Protocol |
| Battery Life | Up to 320/210/120 hours in active mode (reporting every 5 seconds); up to 1 year in sleep mode (reporting every 10 minutes) |
| Reporting Intervals | Configurable from 1 second to 10 minutes in active mode; 1 second to 30 minutes in sleep mode |
| Power Source | 400mAh Lithium Battery, USB rechargeable |
| Protection Level | IP53 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | Not exceeding 90% |

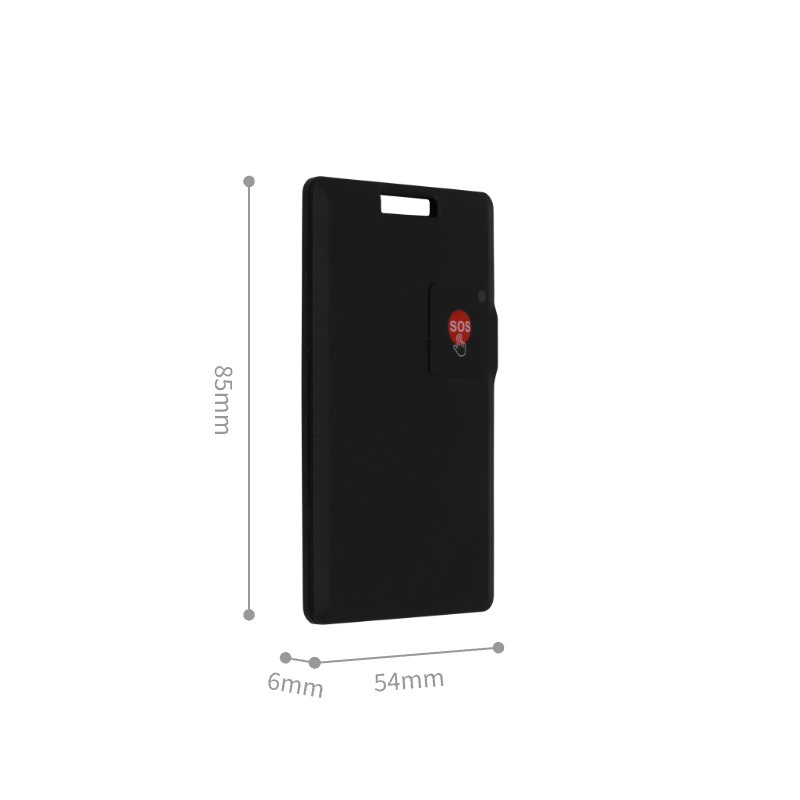

| Dimensions | 85mm x 54mm x 6mm (LxWxH) |
| Weight | 24 grams |
| RFID Standard | 13.56MHz, ISO14443A |
| Local Upgrade | Supported |
| iBeacon Whitelist | Supported |
| Gravity Sensor | Supported |
| Indicator Lights | Supports charging, communication, and low battery indicators |
| Alarm Function | One-key alarm |
| Additional Features | Motion detection |
| Characteristic | Compact and lightweight chest card design |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
| Product Specification | M1 Product Specification_V1.2.pdf | 	2023-2-6 |
