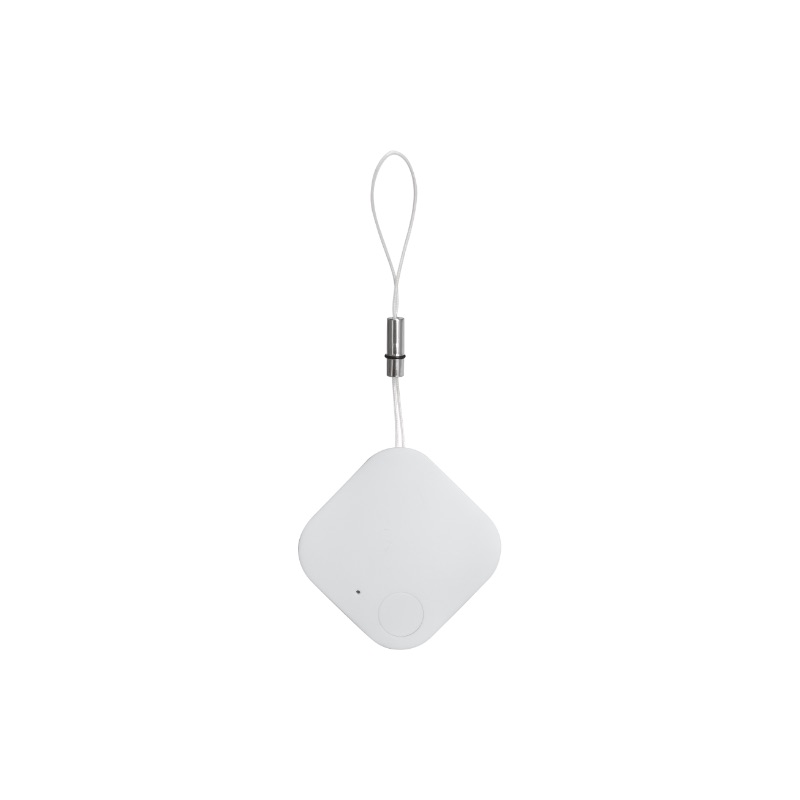

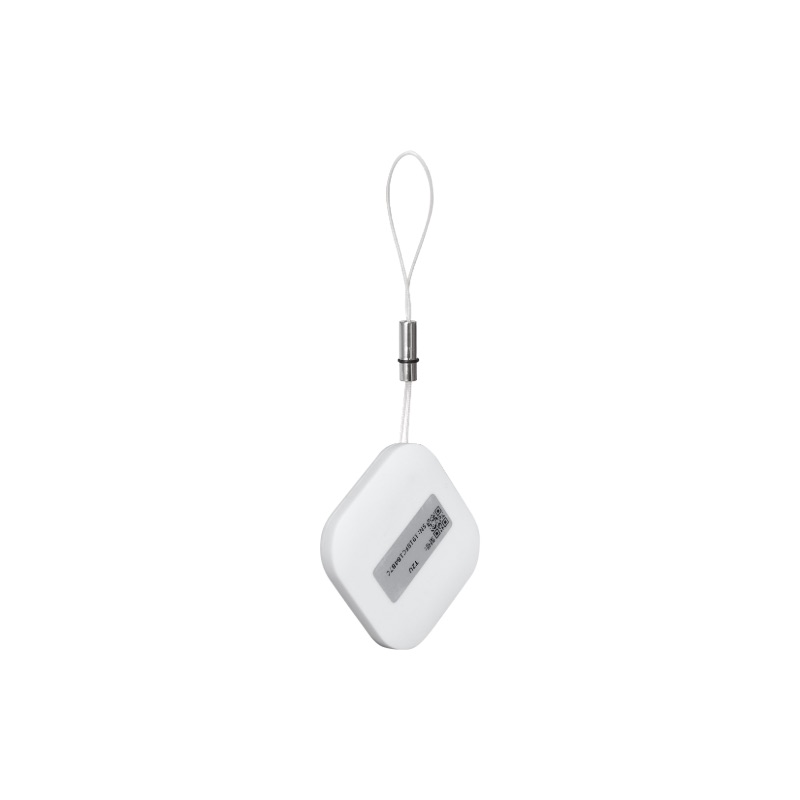

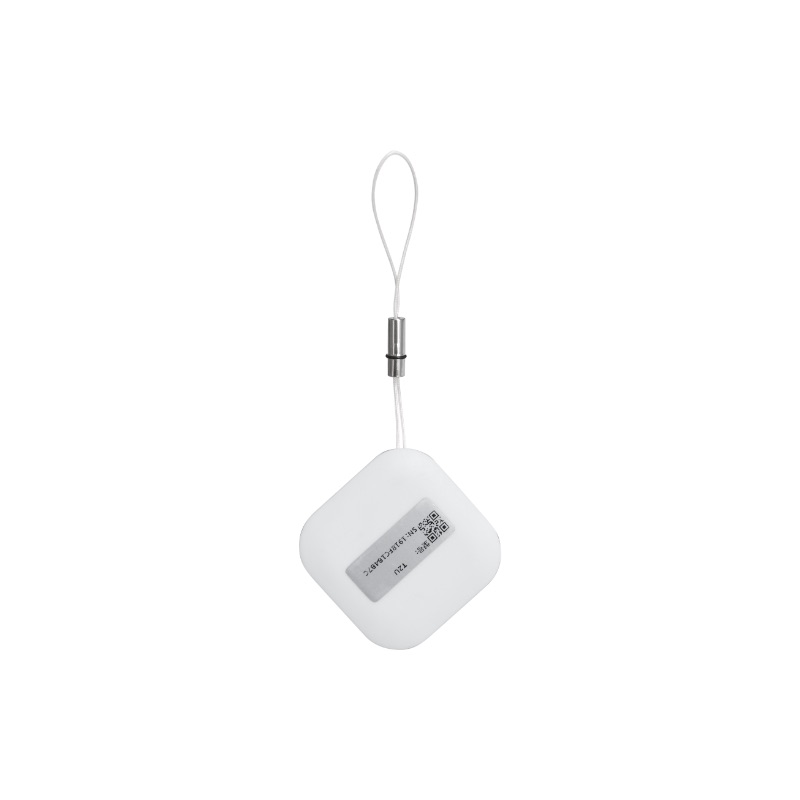

L3 Slim Tag-Type Beacon
- Lightweight and Portable
- Year Battery Life
- Concealed Button
Product Description
The L3 Slim Tag-Type Beacon, a low-power Bluetooth device, is designed for indoor positioning and marketing. Featuring a low-power chip, it offers long battery life, easy setup, and cost-effectiveness. It tracks wearer’s movements and status efficiently, enabling employee attendance and emergency response systems when integrated with Bitwise IoT gateways. With a one-touch alarm, the L3 is ideal for personnel and asset management in hospitals, malls, and exhibition centers.
Applications
Video
Specifications
| Device Model | L3 |
| Chip | st.n.w.x.x Chip: Dialog DA14580 |
| Supported Protocols | Bluetooth BLE 4.2, Apple’s standard iBeacon protocol |
| Measurement Method | RSSI |
| Power Supply | CR2032 Button Cell |
| Transmission Power | 0dBm or -20dBm (default 0dBm) |
| Broadcast Frequency | Three channels 37, 38, 39, with center frequencies at 2402MHz, 2426MHz, 2480MHz |
| Transmission Distance | Up to 120 meters |
| Battery Life | 1 year (calculated with 1000ms broadcast interval, 0dBm power) |
| Broadcast Interval | Configurable, range from 100ms to 5000ms |
| Protection Level | IP5X |
| Explosion-Proof Level | Not supported |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | Not exceeding 90% |

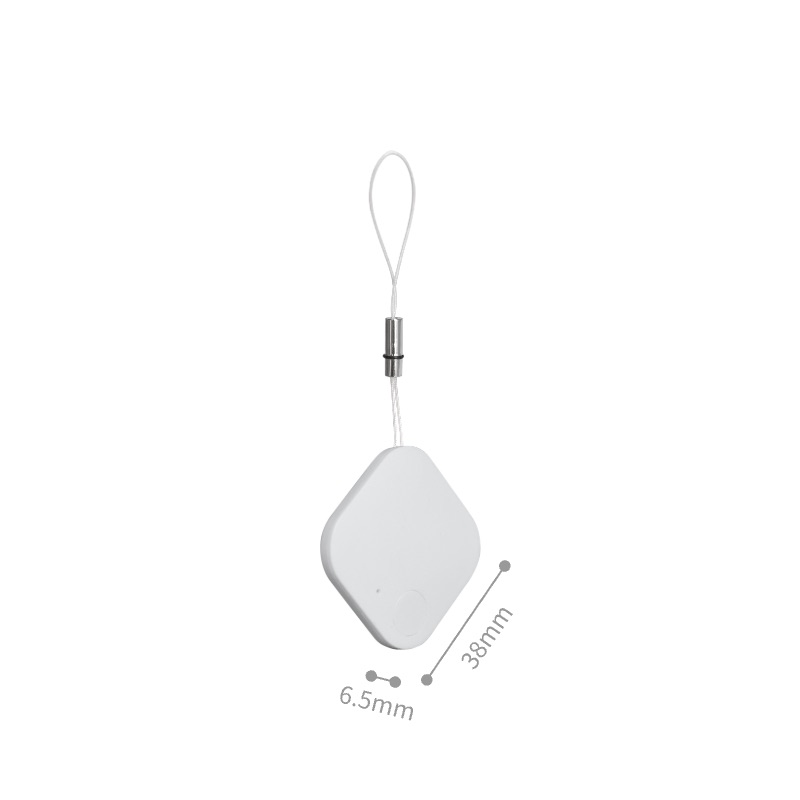

| Dimensions | 38mm x 38mm x 6.5mm (LxWxH) |
| Weight | About 8.3 grams |
| LED Indicators | Alarm indication, switch indication |
| Alarm Function | One-touch alarm |
| Additional Features | Supports button switch, LED indicator, anti-loss lanyard, provides secondary development SDK |
| Compatible Systems | Android 4.3 and above |
| Security | Password protection, tamper-proof, anti-leeching |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
