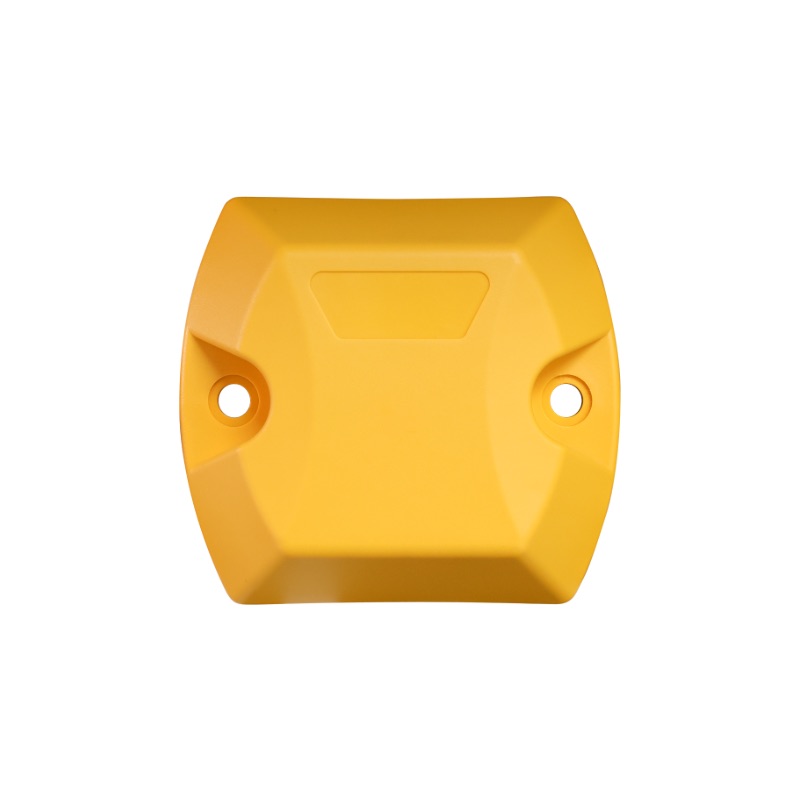

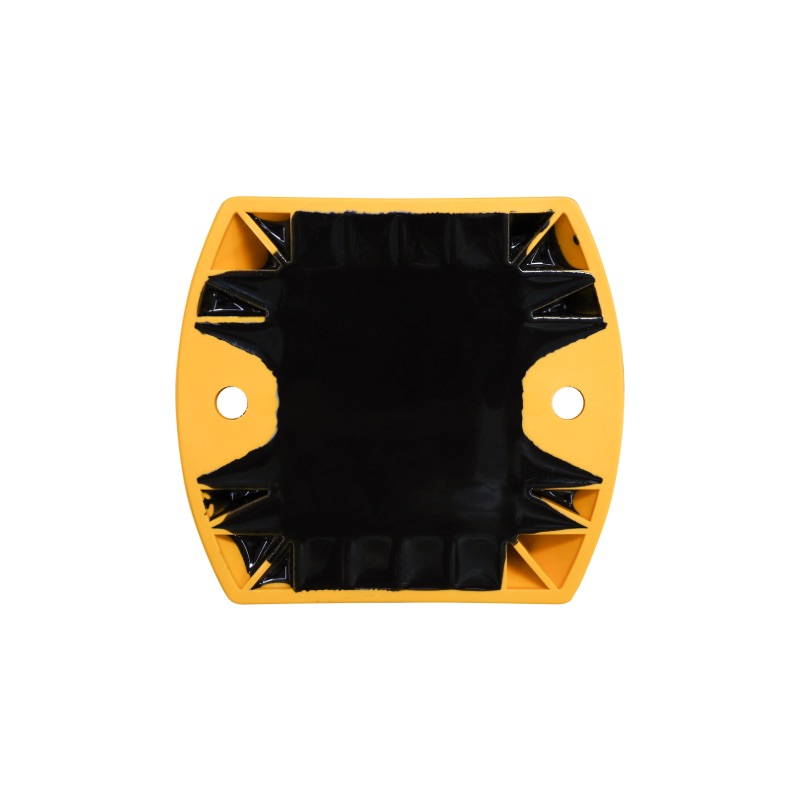

C3 Outdoor Ground-Mounted Beacon
- IP68
- 10+ Years Battery Life
- Pressure and shock resistance
- Broadcast range of 120 meters
Product Description
The C3 is designed for indoor and outdoor positioning, featuring a low-power, high-performance Bluetooth chip and a large-capacity battery for over 10 years of battery life. The product is structurally robust with waterproof and dustproof (IP68), shock resistance, and pressure resistance (20 tons). Ideal for parking management in hospitals, parks, and industrial facilities, it meets requirements for strong pressure resistance and maintenance-free outdoor deployment. The beacon can be deployed in various harsh environments, expanding its application in challenging conditions.
Applications
Video
Specifications
| Device Model | C3 |
| Chip | Dialog DA14* Series Chip |
Supported Protocols | BLE 4.2, Apple’s iBeacon Protocol |
| Measurement Method | RSSI |
| Power Supply | ER14505 Lithium Thionyl Chloride Batteries x2 |
| Transmission Power | 0dBm or -20dBm (Default: 0dBm) |
| Transmission Distance | Up to 120 meters |
| Battery Life | 10+ years (calculated at 500ms broadcast interval, 0dBm power) |
| Broadcast Interval | Configurable, range from 100ms to 5000ms |
| Protection Level | IP68 |
| Operating Temperature | -40℃ to 85℃ |
| Operating Humidity | Not exceeding 90% |
| Pressure Resistance | 20 tons |

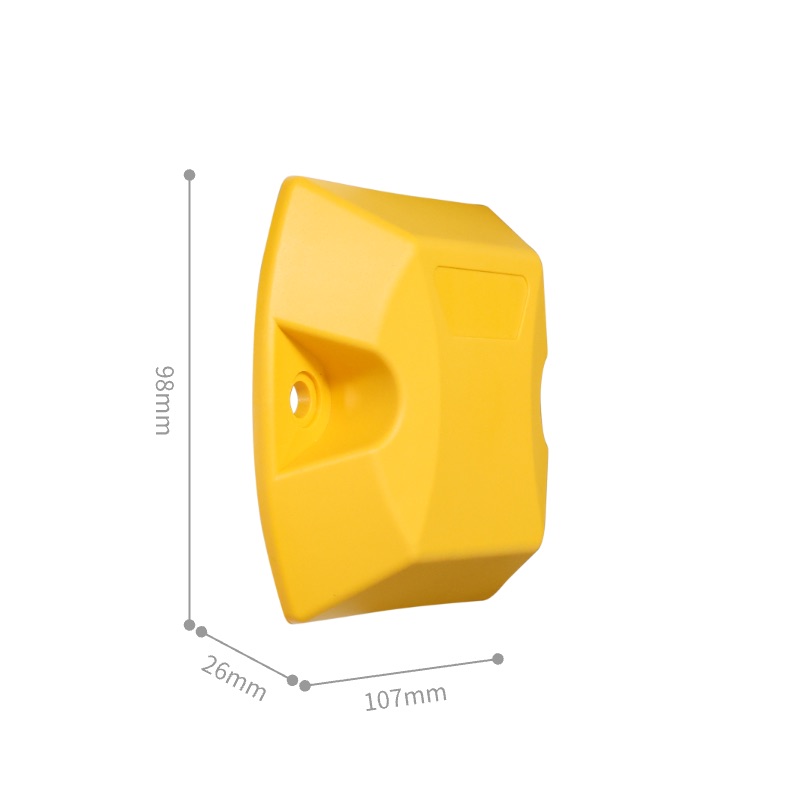

| Dimensions | 107mm x 98mm x 26mm (LxWxH) |
| Weight | Approximately 260 grams |
| Other Features | Provides secondary development SDK |
| Compatible Systems | Android 4.3 and above |
| Security | Password protection, tamper-proof, anti-cloning |
| Mobile App Configuration | Supports modification of UUID, Major, Minor, broadcast interval, broadcast power, and setting tamper-proof keys, etc. |
Document Download
| Type | Name | Last Update Time |
|---|---|---|
|
Product Specification |
M1 Product Specification_V1.2.pdf |
2023-2-6 |
