G3 Gateway

Product Description

The G3 Gateway is a Bluetooth Low Energy gateway for detecting BLE devices and data collection. It uses Ethernet for data transmission, facilitating quick cloud server access and ensuring data security and privacy. The G3 Gateway supports rapid deployment of location-based services and Bluetooth tag-based tracking for people or items. It’s ideal for use in storage, medical, retail, and industrial applications to enhance efficiency and reduce costs.

Applications

Passive Bluetooth Device Localization, commonly used for:

Personnel location monitoring based on Bluetooth smart wearables

Location monitoring of valuable items using Bluetooth tags

iBeacon Node Monitoring and Management, often applied in:

Monitoring and managing large and medium-sized iBeacon networks

Video

Specifications

Device Model	G3
Supported Protocols	Bluetooth 4.2 and above
Power Supply	DC 5V-1A / Compliant with IEEE 802.3af POE
Operating Frequency	2.4GHz
Transmission Distance	Up to 100m
Reporting Interval	Supports 1-second packet reporting / per-packet reporting
Protection Level	IP53
Operating Temperature	-20℃ to 60℃
Operating Humidity	Not exceeding 90%*

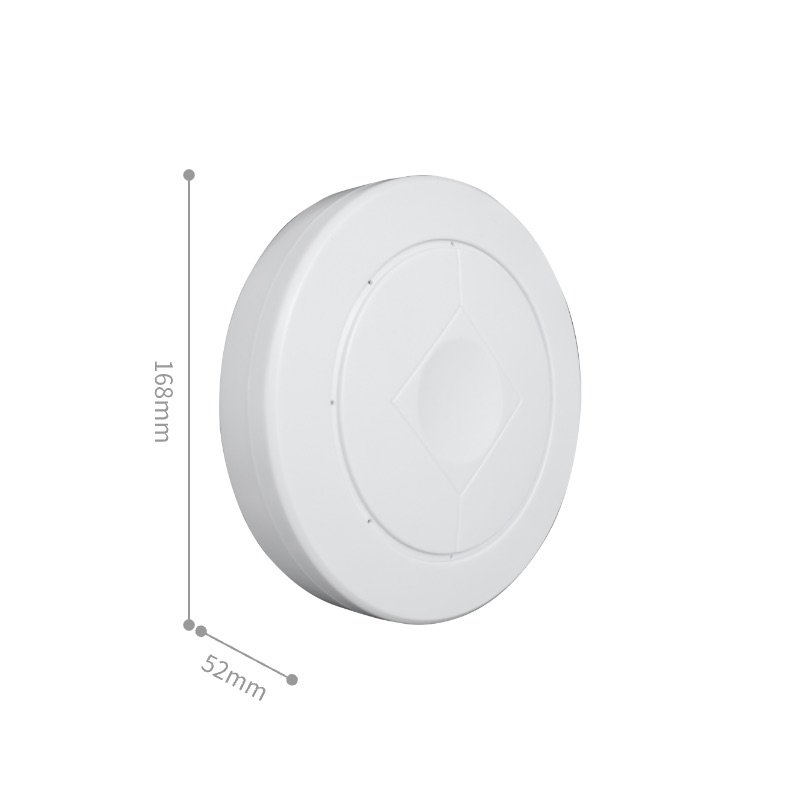

Dimensions	Diameter 168mm, Height 52mm
Weight	210g
Local Upgrade	Supported
Product Features	Easy installation, suitable for personnel and asset management

Document Download

Type	Name	Last Update Time
Product Specification	M1 Product Specification_V1.2.pdf	2023-2-6
